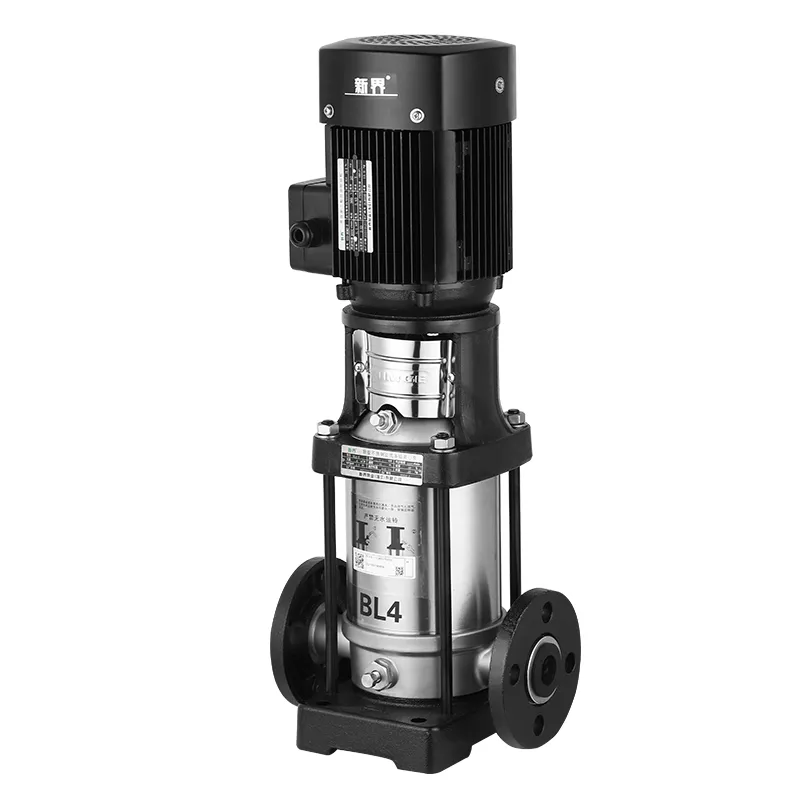

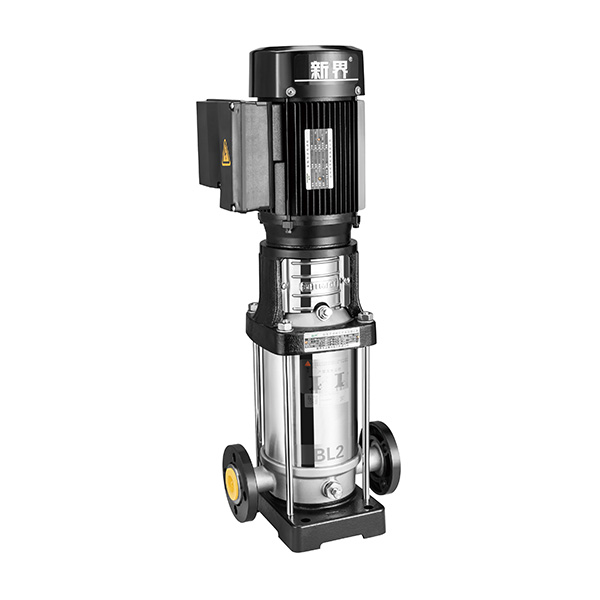

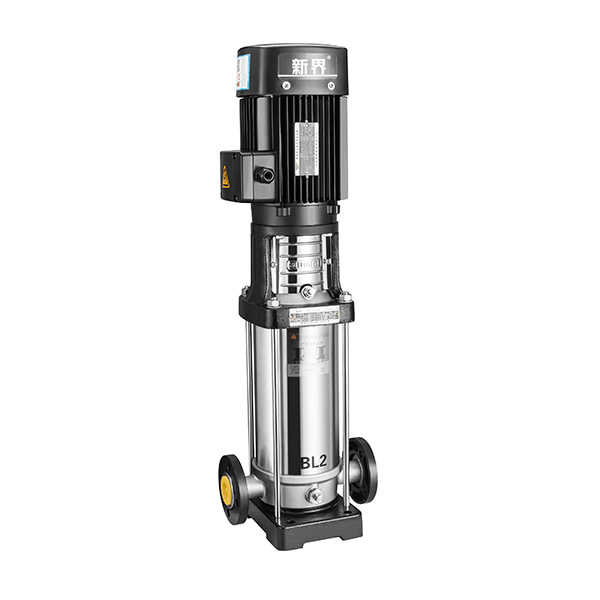

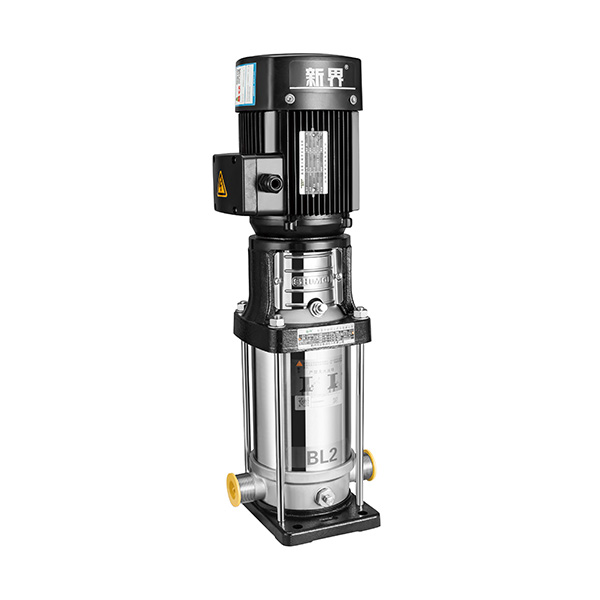

SHIMGE BL(T) Stainless Steel Vertical Multistage Pump

BL2-2|BLT2-2|BL2-3|BLT2-3|BL2-4|BLT2-4|BL2-5|BLT2-5|BL2-6|BLT2-6|BL2-7|BLT2-7|BL2-9|BLT2-9|BL2-11|BLT2-11|BL2-13|BLT2-13|BL2-15|BLT2-15|BL2-18|BLT2-18|BL2-22|BLT2-22|BL2-26|BLT2-26|BL4-2|BLT4-2|BL4-3|BLT4-3|BL4-4|BLT4-4|BL4-5|BLT4-5|BL4-6|BLT4-6|BL4-7|BLT4-7|BL4-8|BLT4-8|BL4-10|BLT4-10|BL4-12|BLT4-12|BL4-14|BLT4-14|BL4-16|BLT4-16|BL4-19|BLT4-19|BL4-22|BLT4-22|BL8-2|BLT8-2|BL8-3|BLT8-3|BL8-4

SHIMGE Pump Industry’s BL(T) stainless steel vertical multistage pumps feature superior hydraulic models and advanced manufacturing processes.Key components in contact with the fluid are made of high-quality 304 stainless steel,while the shaft seal utilizes a mechanical seal made of hard alloy and fluororubber.These pumps offer a compact structure,low noise levels,a small footprint,and significant energy efficiency.They are suitable for a wide range of applications
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Applications:

Pressure boosting for water supply, water treatment systems, industrial liquid transfer, agricultural irrigation, secondary pressurization, building and office tower pressurization, high-rise water supply, and residential complex secondary pressurization.

Product Overview:

The BL(T) series consists of lightweight, stainless steel, vertical multistage centrifugal pumps designed and manufactured using advanced domestic and international technologies. They feature standard vertical motors and alloy mechanical seals, making replacement easy. The flow-passage components of the BL series are made entirely of stainless steel, while the BLT series incorporates some cast-iron components, making it suitable for mildly corrosive media. Since their market launch, these pumps have been highly acclaimed by users for their high efficiency, energy-saving capabilities, reliable quality, and wide range of applications.

Product Features:

1. Utilizes excellent hydraulic models and advanced manufacturing processes, significantly enhancing pump performance and service life;

2. Employs mechanical seals made of cemented carbide and fluororubber, improving operational reliability and allowing for the handling of higher-temperature media;

3. Flow-passage components are constructed using stainless steel stamping and welding, making the pump suitable for mildly corrosive media;

4. Features a compact overall structure, small footprint, light weight, low noise, significant energy savings, and ease of inspection/maintenance;

5. Inlet and outlet ports are aligned on the same horizontal axis, allowing for direct in-line pipeline installation;

6. Uses standard motors, enabling users to easily select and equip the motor according to their specific needs;

7. Can be equipped with an intelligent protector to provide effective protection against dry running, phase loss, and overload.

Parameters

Specifications and Model Power (kW) Rated flow rate (m³/h) Rated head (m) Flange Overall dimensions (mm) Net Weight (kg)
BL2-2 0.37 2 15 DN25 250*210*498 22
BLT2-2 0.37 2 15 DN25 250*210*498 26
BL2-3 0.37 2 22 DN25 250*210*498 22
BLT2-3 0.37 2 22 DN25 250*210*498 26
BL2-4 0.55 2 30 DN25 250*210*516 24
BLT2-4 0.55 2 30 DN25 250*210*516 28
BL2-5 0.55 2 37 DN25 250*210*534 24
BLT2-5 0.55 2 37 DN25 250*210*534 28
BL2-6 0.75 2 45 DN25 250*210*595 28
BLT2-6 0.75 2 45 DN25 250*210*595 32
BL2-7 0.75 2 52 DN25 250*210*613 28
BLT2-7 0.75 2 52 DN25 250*210*613 32
BL2-9 1.1 2 67 DN25 250*210*649 31
BLT2-9 1.1 2 67 DN25 250*210*649 35
BL2-11 1.1 2 82 DN25 250*210*685 32
BLT2-11 1.1 2 82 DN25 250*210*685 36
BL2-13 1.5 2 98 DN25 250*210*779 35
BLT2-13 1.5 2 98 DN25 250*210*779 40
BL2-15 1.5 2 112 DN25 250*210*815 36
BLT2-15 1.5 2 112 DN25 250*210*815 40
BL2-18 2.2 2 136 DN25 250*210*869 40
BLT2-18 2.2 2 136 DN25 250*210*869 45
BL2-22 2.2 2 165 DN25 250*210*941 42
BLT2-22 2.2 2 165 DN25 250*210*941 46
BL2-26 3 2 198 DN25 250*210*1047 50
BLT2-26 3 2 198 DN25 250*210*1047 55
BL4-2 0.37 4 15 DN32 250*210*498 22
BLT4-2 0.37 4 15 DN32 250*210*498 28
BL4-3 0.55 4 24 DN32 250*210*525 25
BLT4-3 0.55 4 24 DN32 250*210*525 30
BL4-4 0.75 4 32 DN32 250*210*595 28
BLT4-4 0.75 4 32 DN32 250*210*595 33
BL4-5 1.1 4 40 DN32 250*210*622 30
BLT4-5 1.1 4 40 DN32 250*210*622 35
BL4-6 1.1 4 48 DN32 250*210*649 31
BLT4-6 1.1 4 48 DN32 250*210*649 36
BL4-7 1.5 4 56 DN32 250*210*734 34
BLT4-7 1.5 4 56 DN32 250*210*734 40
BL4-8 1.5 4 64 DN32 250*210*761 35
BLT4-8 1.5 4 64 DN32 250*210*761 40
BL4-10 2.2 4 81 DN32 250*210*815 39
BLT4-10 2.2 4 81 DN32 250*210*815 44
BL4-12 2.2 4 95 DN32 250*210*869 40
BLT4-12 2.2 4 95 DN32 250*210*869 46
BL4-14 3 4 112 DN32 250*210*957 48
BLT4-14 3 4 112 DN32 250*210*957 53
BL4-16 3 4 129 DN32 250*210*1011 49
BLT4-16 3 4 129 DN32 250*210*1011 54
BL4-19 4 4 153 DN32 250*212*1122 58
BLT4-19 4 4 153 DN32 250*212*1122 63
BL4-22 4 4 178 DN32 250*212*1203 60
BLT4-22 4 4 178 DN32 250*212*1203 65
BL8-2 0.75 8 18 DN40 280*250*620 36
BLT8-2 0.75 8 18 DN40 280*250*620 43
BL8-3 1.1 8 27 DN40 280*250*650 38
BLT8-3 1.1 8 27 DN40 280*250*650 45
BL8-4 1.5 8 36 DN40 280*250*730 42
BLT8-4 1.5 8 36 DN40 280*250*730 49
BL8-5 2.2 8 45 DN40 280*250*760 46
BLT8-5 2.2 8 45 DN40 280*250*760 53
BL8-6 2.2 8 54 DN40 280*250*790 47
BLT8-6 2.2 8 54 DN40 280*250*790 54
BL8-8 3 8 73 DN40 280*250*885 55
BLT8-8 3 8 73 DN40 280*250*885 63
BL8-10 4 8 92 DN40 280*250*975 65
BLT8-10 4 8 92 DN40 280*250*975 72
BL8-11 4 8 101 DN40 280*250*1035 84
BLT8-11 4 8 101 DN40 280*250*1035 92
BL8-12 4 8 111 DN40 328*250*1135 84
BLT8-12 4 8 111 DN40 328*250*1135 92
BL8-14 5.5 8 130 DN40 328*250*1194 86
BLT8-14 5.5 8 130 DN40 328*258*1194 94
BL8-16 5.5 8 148 DN40 328*258*1254 89
BLT8-16 5.5 8 148 DN40 328*258*1254 96
BL8-18 7.5 8 167 DN40 328*258*1314 95
BLT8-18 7.5 8 167 DN40 328*258*1314 102
BL8-20 7.5 8 186 DN40 328*258*1374 97
BLT8-20 7.5 8 186 DN40 328*258*1374 104
BL12-2 1.5 12 20 DN50 300*250*683 41
BLT12-2 1.5 12 20 DN50 300*250*683 49
BL12-3 2.2 12 30 DN50 300*250*715 45
BLT12-3 2.2 12 30 DN50 300*250*715 53
BL12-4 3 12 40 DN50 300*250*781 53
BLT12-4 3 12 40 DN50 300*250*781 61
BL12-5 3 12 50 DN50 300*250*813 54
BLT12-5 3 12 50 DN50 300*250*813 62
BL12-6 4 12 60 DN50 300*250*874 62
BLT12-6 4 12 60 DN50 300*250*874 70
BL12-7 5.5 12 70 DN50 300*258*970 80
BLT12-7 5.5 12 70 DN50 300*258*970 89
BL12-8 5.5 12 80 DN50 300*258*1001 81
BLT12-8 5.5 12 80 DN50 300*258*1001 90
BL12-9 5.5 12 91 DN50 300*258*1033 82
BLT12-9 5.5 12 91 DN50 300*258*1033 91
BL12-10 7.5 12 101 DN50 300*258*1064 87
BLT12-10 7.5 12 101 DN50 300*258*1064 96
BL12-12 7.5 12 121 DN50 300*258*1128 90
BLT12-12 7.5 12 121 DN50 300*258*1128 98
BL12-14 11 12 141 DN50 426*350*1323 164
BLT12-14 11 12 141 DN50 426*350*1323 173
BL12-16 11 12 162 DN50 426*350*1386 167
BLT12-16 11 12 162 DN50 426*350*1386 175
BL12-18 11 12 183 DN50 426*350*1449 169
BLT12-18 11 12 183 DN50 426*350*1449 178
BL16-2 2.2 16 22 DN50 300*250*710 45
BLT16-2 2.2 16 22 DN50 300*250*710 53
BL16-3 3 16 34 DN50 300*250*790 52
BLT16-3 3 16 34 DN50 300*250*790 60
BL16-4 4 16 46 DN50 300*250*865 61
BLT16-4 4 16 46 DN50 300*250*865 69
BL16-5 5.5 16 58 DN50 300*258*976 79
BLT16-5 5.5 16 58 DN50 300*258*976 88
BL16-6 5.5 16 70 DN50 300*258*1021 81
BLT16-6 5.5 16 70 DN50 300*258*1021 90
BL16-7 7.5 16 82 DN50 300*258*1066 84
BLT16-7 7.5 16 82 DN50 300*258*1066 95
BL16-8 7.5 16 94 DN50 300*258*1111 86
BLT16-8 7.5 16 94 DN50 300*258*1111 97
BL16-10 11 16 118 DN50 426*350*1335 164
BLT16-10 11 16 118 DN50 426*350*1335 173
BL16-12 11 16 141 DN50 426*350*1425 167
BLT16-12 11 16 141 DN50 426*350*1425 176
BL16-14 15 16 166 DN50 426*350*1515 181
BLT16-14 15 16 166 DN50 426*350*1515 189
BL16-16 15 16 189 DN50 426*350*1605 184
BLT16-16 15 16 189 DN50 426*350*1605 192
BL20-2 2.2 20 23 DN50 300*250*710 46
BLT20-2 2.2 20 23 DN50 300*250*710 53
BL20-3 4 20 35 DN50 300*250*820 61
BLT20-3 4 20 35 DN50 300*250*820 68
BL20-4 5.5 20 47 DN50 300*258*931 79
BLT20-4 5.5 20 47 DN50 300*258*931 87
BL20-5 5.5 20 58 DN50 300*258*976 81
BLT20-5 5.5 20 58 DN50 300*258*976 88
BL20-6 7.5 20 70 DN50 300*258*1021 84
BLT20-6 7.5 20 70 DN50 300*258*1021 94
BL20-7 7.5 20 82 DN50 300*258*1066 86
BLT20-7 7.5 20 82 DN50 300*258*1066 95
BL20-8 11 20 94 DN50 426*350*1245 162
BLT20-8 11 20 94 DN50 426*350*1245 170
BL20-10 11 20 118 DN50 426*350*1335 165
BLT20-10 11 20 118 DN50 426*350*1335 173
BL20-12 15 20 142 DN50 426*350*1425 180
BLT20-12 15 20 142 DN50 426*350*1425 186
BL20-14 15 20 166 DN50 426*350*1515 183
BLT20-14 15 20 166 DN50 426*350*1515 189
BL20-17 18.5 20 202 DN50 426*350*1694 203
BLT20-17 18.5 20 202 DN50 426*350*1694 211
BL32-2 4 32 27 DN65 320*298*989 81
BLT32-2 4 32 27 DN65 320*298*989 85
BL32-2-2 3 32 20 DN65 320*298*959 74
BLT32-2-2 3 32 20 DN65 320*298*959 78
BL32-3 5.5 32 40 DN65 320*298*1119 100
BLT32-3 5.5 32 40 DN65 320*298*1119 104
BL32-3-2 5.5 32 33 DN65 320*298*1119 100
BLT32-3-2 5.5 32 33 DN65 320*298*1119 104
BL32-4 7.5 32 53 DN65 320*298*1189 106
BLT32-4 7.5 32 53 DN65 320*298*1189 110
BL32-4-2 7.5 32 46 DN65 320*298*1189 106
BLT32-4-2 7.5 32 46 DN65 320*298*1189 110
BL32-5 11 32 67 DN65 426*350*1392 185
BLT32-5 11 32 67 DN65 426*350*1392 189
BL32-5-2 11 32 60 DN65 426*350*1392 185
BLT32-5-2 11 32 60 DN65 426*350*1392 189
BL32-6 11 32 81 DN65 426*350*1462 189
BLT32-6 11 32 81 DN65 426*350*1462 193
BL32-6-2 11 32 74 DN65 426*350*1462 189
BLT32-6-2 11 32 74 DN65 426*350*1462 193
BL32-7 15 32 95 DN65 426*350*1532 203
BLT32-7 15 32 95 DN65 426*350*1532 207
BL32-7-2 15 32 88 DN65 426*350*1532 203
BLT32-7-2 15 32 88 DN65 426*350*1532 207
BL32-8 15 32 109 DN65 426*350*1602 207
BLT32-8 15 32 109 DN65 426*350*1602 211
BL32-8-2 15 32 102 DN65 426*350*1602 207
BLT32-8-2 15 32 102 DN65 426*350*1602 211
BL32-9 18.5 32 124 DN65 426*350*1716 228
BLT32-9 18.5 32 124 DN65 426*350*1716 232
BL32-9-2 18.5 32 117 DN65 426*350*1716 228
BLT32-9-2 18.5 32 117 DN65 426*350*1716 232
BL32-10 18.5 32 138 DN65 426*350*1786 232
BLT32-10 18.5 32 138 DN65 426*350*1786 236
BL32-10-2 18.5 32 131 DN65 426*350*1786 232
BLT32-10-2 18.5 32 131 DN65 426*350*1786 236
BL32-11 22 32 153 DN65 445*355*1892 278
BLT32-11 22 32 153 DN65 445*355*1892 282
BL32-11-2 22 32 146 DN65 445*355*1892 278
BLT32-11-2 22 32 146 DN65 445*355*1892 282
BL32-12 22 32 167 DN65 445*355*1962 281
BLT32-12 22 32 167 DN65 445*355*1962 286
BL32-12-2 22 32 160 DN65 445*355*1962 281
BLT32-12-2 22 32 160 DN65 445*355*1962 286
BL32-13 30 32 181 DN65 500*400*2123 361
BLT32-13 30 32 181 DN65 500*400*2123 365
BL32-13-2 30 32 174 DN65 500*400*2123 361
BLT32-13-2 30 32 174 DN65 500*400*2123 365
BL32-14 30 32 196 DN65 500*400*2193 364
BLT32-14 30 32 196 DN65 500*400*2193 369
BL32-14-2 30 32 189 DN65 500*400*2193 364
BLT32-14-2 30 32 189 DN65 500*400*2193 369
BL32-15 30 32 210 DN65 500*400*2263 368
BLT32-15 30 32 210 DN65 500*400*2263 373
BL32-15-2 30 32 203 DN65 500*400*2263 368
BLT32-15-2 30 32 203 DN65 500*400*2263 373
BL45-2 7.5 45 39 DN80 365*330*1111 113
BLT45-2 7.5 45 39 DN80 365*330*1111 121
BL45-2-2 5.5 45 30 DN80 365*330*1111 109
BLT45-2-2 5.5 45 30 DN80 365*330*1111 117
BL45-3 11 45 58 DN80 435*350*1324 190
BLT45-3 11 45 58 DN80 435*350*1324 197
BL45-3-2 11 45 50 DN80 435*350*1324 190
BLT45-3-2 11 45 50 DN80 435*350*1324 197
BL45-4 15 45 78 DN80 435*350*1404 204
BLT45-4 15 45 78 DN80 435*350*1404 211
BL45-4-2 15 45 69 DN80 435*350*1404 204
BLT45-4-2 15 45 69 DN80 435*350*1404 211
BL45-5 18.5 45 97 DN80 435*350*1528 225
BLT45-5 18.5 45 97 DN80 435*350*1528 233
BL45-5-2 18.5 45 88 DN80 435*350*1528 225
BLT45-5-2 18.5 45 88 DN80 435*350*1528 233
BL45-6 22 45 116 DN80 450*355*1644 272
BLT45-6 22 45 116 DN80 450*355*1644 279
BL45-6-2 22 45 108 DN80 450*355*1644 272
BLT45-6-2 22 45 108 DN80 450*355*1644 279
BL45-7 30 45 135 DN80 500*400*1815 351
BLT45-7 30 45 135 DN80 500*400*1815 359
BL45-7-2 30 45 127 DN80 500*400*1815 351
BLT45-7-2 30 45 127 DN80 500*400*1815 359
BL45-8 30 45 154 DN80 500*400*1895 354
BLT45-8 30 45 154 DN80 500*400*1895 361
BL45-8-2 30 45 146 DN80 500*400*1895 354
BLT45-8-2 30 45 146 DN80 500*400*1895 361
BL45-9 37 45 174 DN80 500*400*2055 380
BLT45-9 37 45 174 DN80 500*400*2055 388
BL45-9-2 30 45 166 DN80 500*400*1975 358
BLT45-9-2 30 45 166 DN80 500*400*1975 366
BL45-10 37 45 193 DN80 500*400*2135 385
BLT45-10 37 45 193 DN80 500*400*2135 392
BL45-10-2 37 45 185 DN80 500*400*2055 385
BLT45-10-2 37 45 185 DN80 500*400*2055 392
BL45-11 45 45 214 DN80 550*450*2255 450
BLT45-11 45 45 214 DN80 550*450*2255 457
BL45-11-2 45 45 206 DN80 550*450*2175 450
BLT45-11-2 45 45 206 DN80 550*450*2175 457
BL45-12 45 45 236 DN80 550*450*2335 454
BLT45-12 45 45 236 DN80 550*450*2335 462
BL45-12-2 45 45 226 DN80 550*450*2255 454
BLT45-12-2 45 45 226 DN80 550*450*2255 462
BLT45-13-2 45 45 247 DN80 550*450*2335 458
BL45-13-2 45 45 247 DN80 550*450*2335 465
BL64-2 11 64 40 DN100 453*350*1213 197
BL64-2-1 11 64 33 DN100 453*350*1213 197
BL64-2-2 7.5 64 26 DN100 385*330*1075 133
BLT64-2 11 64 40 DN100 435*350*1213 204
BLT64-2-1 11 64 33 DN100 435*350*1213 204
BLT64-2-2 7.5 64 26 DN100 385*330*1075 141
BL64-3 18.5 64 60 DN100 435*350*1367 227
BL64-3-1 15 64 46 DN100 435*350*1323 210
BL64-3-1 15 64 53 DN100 435*350*1323 210
BLT64-3 18.5 64 60 DN100 435*350*1367 235
BLT64-3-1 15 64 53 DN100 435*350*1323 218
BLT64-3-2 15 64 46 DN100 435*350*1323 218
BL64-4 22 64 80 DN100 450*355*1483 274
BL64-4-2 18.5 64 66 DN100 435*350*1447 231
BL64-4-1 22 64 73 DN100 450*355*1483 274
BLT64-4 22 64 80 DN100 450*355*1483 282
BLT64-4-1 22 64 73 DN100 450*355*1483 282
BLT64-4-2 18.5 64 66 DN100 408*350*1447 239
BL64-5 30 64 102 DN100 500*400*1653 354
BL64-5-2 30 64 88 DN100 500*400*1653 354
BL64-5-1 30 64 95 DN100 500*400*1653 354
BLT64-5 30 64 102 DN100 500*400*1653 361
BLT64-5-1 30 64 95 DN100 500*400*1653 361
BLT64-5-2 30 64 88 DN100 500*400*1653 361
BL64-6 37 64 124 DN100 500*400*1734 380
BL64-6-2 30 64 110 DN100 500*400*1734 358
BL64-6-1 37 64 117 DN100 500*400*1734 380
BLT64-6 37 64 124 DN100 500*400*1734 388
BLT64-6-1 37 64 117 DN100 500*400*1734 388
BLT64-6-2 30 64 110 DN100 500*400*1734 366
BL64-7 45 64 146 DN100 550*450*1854 445
BLT64-7-2 37 64 132 DN100 500*400*1814 386
BLT64-7-1 37 64 139 DN100 500*400*1814 386
BLT64-7 45 64 146 DN100 550*450*1854 453
BLT64-7-1 37 64 139 DN100 500*400*1814 394
BLT64-7-2 37 64 132 DN100 500*400*1814 394
BL64-8 45 64 168 DN100 550*450*1934 450
BL64-8-2 45 64 154 DN100 550*450*1934 450
BL64-8-1 45 64 161 DN100 550*450*1934 450
BLT64-8 45 64 168 DN100 550*450*1934 457
BLT64-8-1 45 64 161 DN100 550*450*1934 457
BLT64-8-2 45 64 154 DN100 550*450*1934 457
BL90-2 15 90 40 DN100 441*350*1269 207
BL90-2-2 11 90 28 DN100 441*350*1269 196
BLT90-2 15 90 40 DN100 441*350*1269 214
BLT90-2-2 11 90 28 DN100 441*350*1269 210
BL90-3 22 90 62 DN100 460*355*1441 269
BL90-3-2 18.5 90 49 DN100 441*350*1405 227
BLT90-3 22 90 62 DN100 460*355*1441 227
BLT90-3-2 18.5 90 49 DN100 441*350*1405 235
BL90-4 30 90 84 DN100 500*400*1624 341
BL90-4-2 30 90 72 DN100 500*400*1624 341
BLT90-4 30 90 84 DN100 500*400*1624 349
BLT90-4-2 30 90 72 DN100 500*400*1624 349
BL90-5 37 90 106 DN100 500*400*1716 376
BL90-5-2 37 90 93 DN100 500*400*1716 376
BLT90-5 37 90 106 DN100 500*400*1716 383
BLT90-5-2 37 90 93 DN100 500*400*1716 383
BL90-6 45 90 130 DN100 550*450*1848 439
BL90-6-2 45 90 117 DN100 550*450*1848 439
BLT90-6 45 90 130 DN100 550*450*1848 447
BLT90-6-2 45 90 117 DN100 550*450*1848 447

Size

Video Introduction

Message Inquiry

*
*
*
*
*
Submit
